GYFTZY33 Undersea Fiber Optic Cable SM MM With Flame Retardant Sheath

Ask Lasest Price
Brand Name :	ZXOFC
Model Number :	ZXOFC-GYTS33-72B1.3
Certification :	CE/ROHS/ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal,Credit card
Supply Ability :	10000KM per month
Delivery Time :	1-2 weeks according to the lengths

Add to Cart

Product Details
Company Profile

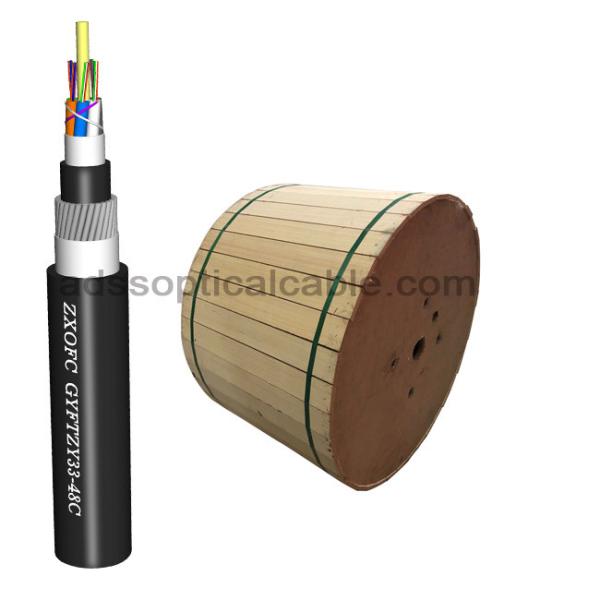

GYFTZY33 Undersea Fiber Optic Cable SM MM With Flame Retardant Sheath

GYFTZY33 Underwater Fiber Optic Cable SM Or MM with Flame Retardant Sheath

Description

The fibers, 250um, are positioned in a loose tube made of a high modulus plastics. The tubes are filled with a water-resistant filling compound . A

fiber Reinforced Plastics (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the

strength member into a compact and circular cable core. Then the cable core is covered with a thin Polyethylene (PE) inner sheath, which is filled

with jelly to protect it from water ingress. A layer of water blocking material is applied around the cable core to prevent it from water ingress all the

same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Cable Cross-section diagram

Feature

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Crush resistance and flexibility

5. The following measures are taken to ensure the cable waterlight:

a. Single Fiber Reinforced Plastics as the central strength member

b. Loose tube filling compound

c. 100% cable core filling

d. PSP enhancing moisture-proof

e. Water-blocking material

Application:

Applications:Long-distance communication and indoor communication
Way of laying: Direct burial, underwater laying
Operating temperature: -40 ~ + 70 °C
Bend radius: static 15x cable diameter

Technique Parameters

Fiber count		/	24
Fiber type		/	G652D
CSM	Material	mm	Steel wire
CSM	size	mm	1.4±0.05
Loose tube	material	mm	PBT
	diameter		1.72±0.05
	thickness		0.30±0.03
	fiber/tube		6
	color		Blue/orange/green/brown
Filler rope	material	mm	PP
	diameter		1.7±0.05
	number		1
Inner armored	material		Corrugated steel tape
Inner armored	thickness		0.2
Inner sheath	material	mm	MDPE
Inner sheath	thickness	mm	1.4
Outer sheath	material	mm	MDPE
Outer sheath	thickness	mm	1.9
Cable diameter		mm	15.8±0.2
Cable weight		kg/km	430

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Temperature Rage:

Operating :-20℃ to 60℃

Storage :-20℃ to 60℃

Standards:

Standards: Comply with Standard YD/T 901-2009 as well as IEC 60794-1.

Certificate

Our services

Our Certificate

Package and delivery

Package:

Standard Wooden Drum With Protection.

Standard reel length:2/3/4/5km/reel,other length is also available

Shipping

For the large order , we usually ship the cable by sea .

For small order , we can ship them by sea (LCL) or by air /by exress

(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
