Double Armored Submarine Fiber Cable / GYTS33 Steady 48 Core Fiber Optic Cable

Ask Lasest Price
Brand Name :	ZXOFC
Model Number :	ZXOFC-GYTS33-48B1.3
Certification :	CE/ROHS/ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal,Credit card
Supply Ability :	10000KM per month
Delivery Time :	1-2 weeks according to the lengths

Add to Cart

Product Details
Company Profile

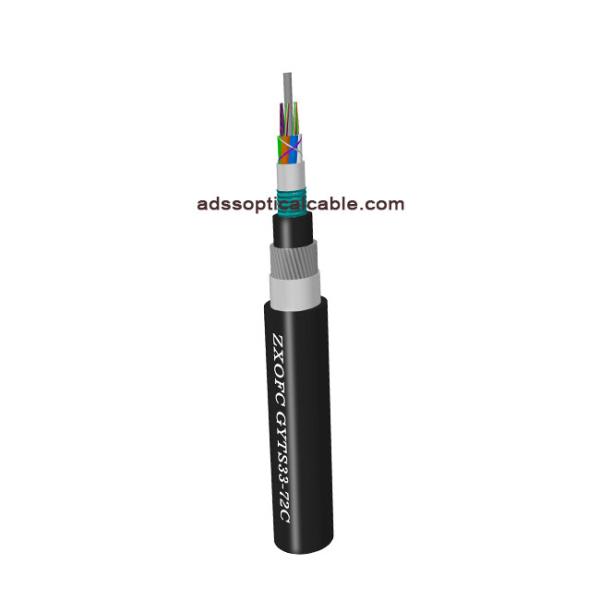

Double Armored Submarine Fiber Cable / GYTS33 Steady 48 Core Fiber Optic Cable

Submarine GYTS33 Double Armored 6/12/24/48/96/144 Core Steady Underwater Cable

Description

1. The fibers 250um are positioned in a loose tube made of a high modulus plastic.

2. The tubes are filled with a water-resistant compound.A steel wire locates in the center of core as a metallic strength member.

3. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Corrugated Steel Tape is applied ar ound the cable core,which is filled with the filling compound to protect it from water ingress.

4. then the cable core is covered with a thin PE inner sheath.

5. After the inner sheath steel wire is armored .

6. At last the cable is completed with a PE outer sheath.

Cable Cross-section diagram

Feature

1. Full cross-section water-blocking structure to ensure good water blocking and moisture resistance.

2. Loose tube is filled with special ointment for a key protection of fiber.

3. The phosphate wire center stiffening member is of high modulus and corrosion resistance.

4. Double-sided vertically-clad laminated corrugated aluminum tape with thin round steel wire armor ensures the mechanical resistance to compression, tensile, and ballistic performance, and meets the application requirements of climbing direct burial and underwater laying.

5. Product life is 30 years.

Application:

Suitable for long distance communication and inter-office communication

Underwater

Technique Parameters

Fiber count		/	24
Fiber type		/	G652D
CSM	Material	mm	Steel wire
CSM	size	mm	1.4±0.05
Loose tube	material	mm	PBT
	diameter		1.72±0.05
	thickness		0.30±0.03
	fiber/tube		6
	color		Blue/orange/green/brown
Filler rope	material	mm	PP
	diameter		1.7±0.05
	number		1
Inner armored	material		Corrugated steel tape
Inner armored	thickness		0.2
Inner sheath	material	mm	MDPE
Inner sheath	thickness	mm	1.4
Outer sheath	material	mm	MDPE
Outer sheath	thickness	mm	1.9
Cable diameter		mm	15.8±0.2
Cable weight		kg/km	430

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Temperature Rage:

Operating :-20℃ to 60℃

Storage :-20℃ to 60℃

Standards:

YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

Certificate

Our services

Our Certificate

Package and delivery

Package:

Standard Wooden Drum With Protection.

Standard reel length:2/3/4/5km/reel,other length is also available

Shipping

For the large order , we usually ship the cable by sea .

For small order , we can ship them by sea (LCL) or by air /by exress

(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
