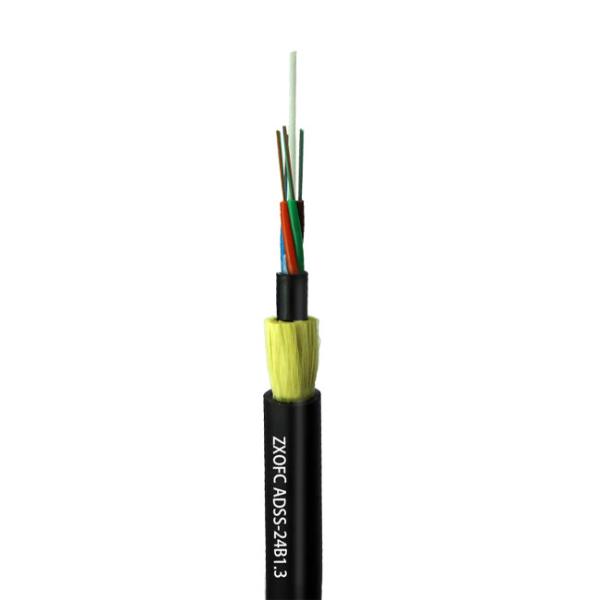

Double Jacket Self-Supporting Adss Fiber Optic Cable All Dielectric
Aerial Fiber Optical Cable
Description
The double sheath is made of polyethylene environmentally friendly
material, which feels like wax, has excellent low temperature
resistance, good chemical stability, and can withstand the erosion
of most acid and alkali. It has small water absorption and
excellent electrical insulation.
The fiber optic cable adopts the well-known brand A-class core,
which has high transmission rate, long distance and small
attenuation. The fiber is made of the same material and uniform in
thickness.
Applications
--- Outdoor aerial applications
--- Low voltage transmission system(≤12 kV)
--- Railway & Telecommunication pole route
--- Subscriber & Local Area Network
--- Voice, data, video & imaging system
--- Can be installed without shutting off the power
--- Light weight and small diameter reducing the load caused by ice
and wind and the load on towers and backprops
--- Large span lengths
--- Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
--- The design life span is 30 years
--- Package : 2~4km/ wooden drum
--- Can be installed without shutting off the power
--- Light weight and small diameter reducing the load caused by ice
and wind and the load on towers and backprops
--- Large span lengths
--- Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
--- The design life span is 30 years
--- Package : 2~4km/ wooden drum
Technique Parameters
| G.652 | G.655 | 50/125μm | 62.5/125μm |
Attenuation (+20℃) | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | | |
Package and delivery
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by
exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including :ZXOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any
of which is optional.
