48 ADSS Optical Cable / Double Jacket PE All Dielectric Self Supporting Cable

ADSS Cable 48 Fibra Optica Cable , Double Jacket PE All Dielectric Self-supporting Cable

Description

ADSS Cables are designed for outdoor installation along power lines,railway or telecommunication cables on poles or lattice towers. The cable is self-supporting and require no messenger or lashing wire for fixing. There are no metallic components used in the cable and has a track-resistant sheath material for installation on medium and high voltage lines.

Technique Parameters

Category	Description		Specifications
			G.652D
Optical Specifications	Attenuation	@1310nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm².km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km^1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N

Cable type		ADSS-24B1			ADSS-48B1
element	--	6			6
Central Strength Member	Material	Fiberglass Reinforce with Plastic (FRP)
Loose Tube	Material	Polybutelene Terephthalate (PBT)
	Diameter	Nom.2.1 mm			Nom.2.3 mm
	--	4 Fibers per Tube			8 Fibers per Tube
Filling compound in loose tube	Material	Thixotropic jelly
Inner Sheath	Material	Black MDPE
Inner Sheath	Thickness	Nom.0.9 mm
Strength Member	Material	Aramid yarns
Outer Sheath	Material	HDPE
Outer Sheath	Thickness	Nom.1.7 mm
Span	m	100	150	250	100	150	250
Overall Diameter	mm	12.0	12.0	12.1	12.6	12.7	12.8
Weight	kg/km	98	98	100	110	111	114
Max.Tensile strength	N	2000	2200	3200	2250	2450	3550

3.2 Fiber coding,The color coding of the optical fiber shall be in accordance with Table 3.2.1

No. of fiber	1	2	3	4	5	6
Color of fiber	Blue	Orange	Green	Brown	Slate	White
No. of fiber	7	8	／	／	／	／
Color offiber	Red	Black	／	／	／	／

Table3.2.2:Identification of optical tube

No. of tube	1	2	3	4	5	6
Color of tube	Blue	Orange	Green	Brown	Slate	White

Table3.2.3:Make-up of cable, No. of Fibers in each Tube

No.of Fibers	No.of Tube		1	2	3	4	5	6
24B1	6	Tube color	Blue	Orange	Green	Brown	Slate	White
24B1	6	No. of fiber	4	4	4	4	4	4
48B1	6	Tube color	Blue	Orange	Green	Brown	Slate	White
48B1	6	No. of fiber	8	8	8	8	8	8

4. TEST REQUIREMENTS

No	Item	Test standard	Method	Acceptance criteria
1	Tensile test	IEC-60794-1-E1	-Max. Tensile strength -Sample length:50 meters -Time: 1minutes;	-Fiber strain at maximum Load: max. 0.33% -Attenuation increase≤0.10dB
2	Crush test	IEC-60794-1-E3	-Load:2200N -Time: 1 minutes -Length: 100mm	-No splits or cracks in the outer jacket; -Attenuation increase<0.10dB,
3	Impact test	IEC-60794-1-E4	-Impact energy: 450g - Height:1 meter -Impact points: min.1 --Number of impacts: 5	-No splits or cracks in the outer jacket -Attenuation increase≤0.10dB(after the test)
4	Torsion test	IEC-60794-1-E7	-1m cable length with 150N weight -±180°, 10 cycles	- No splits or cracks in the outer jacket -Attenuation increase ≤0.10B
5	Repeated bending	IEC-60794-1-E6	-R=20×cable outer diameter -1m cable length with 150N weight,30 cycles	- No splits or cracks in the outer jacket -Attenuation increase ≤0.10dB(after the test)
6	Temperature cycling test	IEC-60794-1-F1	-Temperature step: +20℃→-40℃→+70℃→-40℃→+70℃→+20℃ -Time per each step: 12 hrs -Number of cycles: 2 cycles	-Attenuation variation for reference value(the attenuation to be measured before test at +20±3℃) ≤0.10dB,
7	Water penetration test	IEC-60794-1-F5	-Water height: 1m -Sample length:3m -Duration of test: 24hrs	-No water leakage at the end of the sample
8	Drip test	IEC-60794-1-E14	-Five 0.3m samples suspended vertically in a climate chamber, raised temperature to +70℃	-No filling compound shall drip from tubes after 24 hr

Features:

Suitable for use on distribution and high voltage transmission lines
Requires no messenger wire -- fully self-supporting
Single pass installation -- no messenger, no lashing wire -- faster and lower cost
Cable is water-blocked using dry core technology, therefore no messy flooding compounds
Design details for span lengths up to 1500ft (457m) and fiber counts up to 432
Custom designs available for larger span lengths or other fiber counts
Full line of attachment hardware available for a "system" solution
Track-resistant outer jacket available for installations on high voltage lines where space potentials reach up to 25kV
Gel-filled buffer tubes are S-Z stranded for easy mid-span access

Application

Utilized for telecommunications by power utilities, telcos, and private network groups
Designed for installation on distribution and transmission lines
Capable of being installed in close proximity to conductors if security is a concern
Suitable for underbuild applications, minimizing the need for outages
Used for telecom networks where quick, low-cost installation is a priority

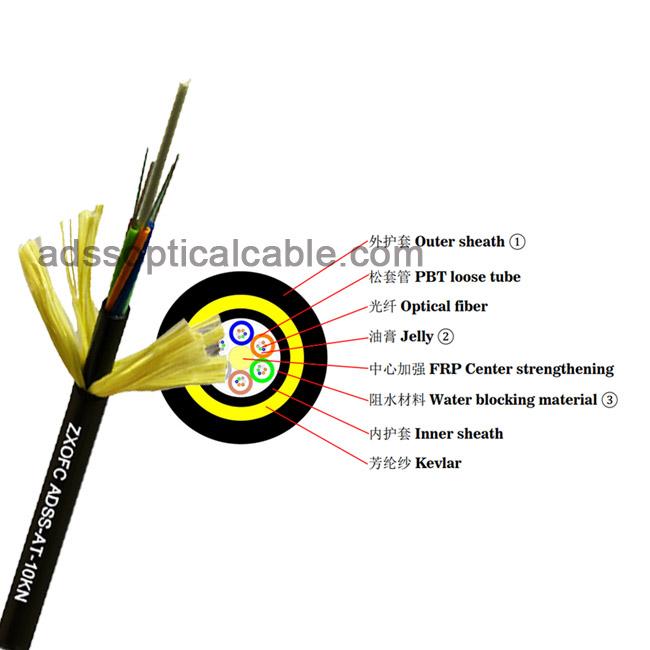

Cable Cross-section diagram

Our services

Our Certificate

Package and delivery

Package:

Standard Wooden Drum With Protection.

Standard reel length:2/3/4/5km/reel,other length is also available

Shipping

For the large order , we usually ship the cable by sea .

For small order , we can ship them by sea (LCL) or by air /by exress

(DHL,UPS,FEDE or TNT..) as your request .
