Outdoor Hybrid Electric Power Optic Fiber Cable 4 8 12 24 Core
G652D Photoelectric Composite Power Fiber Optic Cable
Feature:
1. Low dispersion and attenuation.
2. LAP Aluminum belt is applied around the cable core, which is
filled with the filling compound to protect it from water-ingress.
3. Proper design, precise control for fiber excess length and
distinct stranding process render the excellent mechanical and
environmental properties.
4. The armoring of steel wire and corrugated steel tape make cable
have nice properties of moisture resistance and crush resistance
5. Compact structure and lightness, flexible and good
bend-resistant performance.
Standards:
Comply with Standard YD/T 901 as well as IEC 60794-1.
Applicaiton:
1 Used for outdoor distribution box to the building's pipeline;
overhead; buried.
2 Used in optical communication equipment room, light distribution
frame light connection and optical
3 instruments, equipment connect to the light.
4 Used for tail fiber and jump in line.
5 Used for buildings surrounding into cable.
Description:
Composite Fiber Optic Cables that have a number of different
components laid up within the bundle. These types of cables allow
for multiple transmission paths by various components, whether they
be metal conductors or fib optics, and allow the user to have a
single cable, therefore reducing the overall cost and lead time for
installation.
Technique Parameters
| Fiber count | Structure | Conductor cross-section area | Diameter | Weight | Tensile strength | Crush Resistance Long/Short Term N/100 mm | Bending Radius Static
/Dynamic mm |
| 2 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 4 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 6 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 8 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 10 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 12 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 14 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 16 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 18 | Uni-tube | 1.0 | 9.4 | 92 | 300/600 | 300/1000 | 10D/20D |
| 20 | Uni-tube | 1.0 | 10.4 | 106 | 300/600 | 300/1000 | 10D/20D |
| 22 | Uni-tube | 1.0 | 10.4 | 106 | 300/600 | 300/1000 | 10D/20D |
| 24 | Uni-tube | 1.0 | 10.4 | 106 | 300/600 | 300/1000 | 10D/20D |
| Fiber count | Structure | Conductor cross-section area | Diameter | Weight | Tensile strength | Crush Resistance Long/Short Term N/100 mm | Bending Radius Static
/Dynamic mm |
| 2 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 4 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 6 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 8 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 10 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 12 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 14 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 16 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 18 | Uni-tube | 1.5 | 10.8 | 119 | 300/600 | 300/1000 | 10D/20D |
| 20 | Uni-tube | 1.5 | 11.3 | 127 | 300/600 | 300/1000 | 10D/20D |
| 22 | Uni-tube | 1.5 | 11.3 | 127 | 300/600 | 300/1000 | 10D/20D |
| 24 | Uni-tube | 1.5 | 11.3 | 127 | 300/600 | 300/1000 | 10D/20D |
Temperature:
Operating /Storage:-40°c +70°c

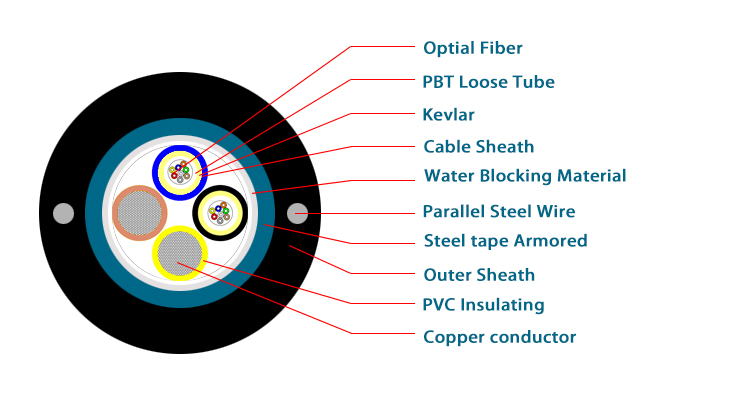

Cable Cross-section diagram
Optical characteristics
| Fiber type | 62.5um(OM1) 850 nm | 50um(OM2) 850 nm/1300 nm | G.652D 1310 nm/1550 nm | G.655 1550 nm/1625 nm |
| Attenuation maximum | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
| Attenuation typical | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24
|
Sheath mark:
The following printing(white hot foil indentation)is applied at
1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.
Port:
Shenzhen/Hongkong/GuangZhou
Lead Time:
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be Negotiated! |
Note
The Packing standard and details as above is estimated and final
size&weight shall be confirmed before shipment.

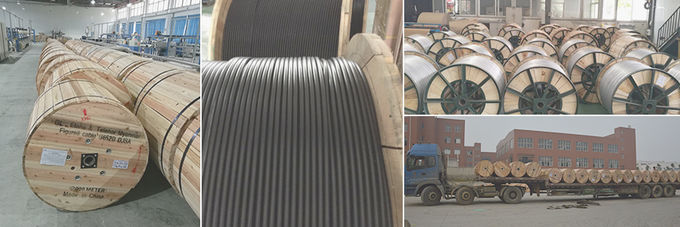

The cables are packed in carton, coiled on Bakelite & wooden drum.
During transportation, right tools should be used to avoid damaging
the
package and to handle with ease. Cables should be protected from
moisture, kept away from high temperature and fire sparks,
protected from
over bending and crushing, protected from mechanical stress and
damage.
