2 Core/ 4 Core/6 Core/12 Core Figure 8 Self-supported Lan armored
Optical Fiber Cable Gyxtc8s
Description
GYXTC8S optical fiber cable is 8-like fiber optic cable that is
widely used in local area network. This type of fiber optic cable
has fantastic
characteristics that are unique from other types of fiber cables.
For instance, GYXTC8S optical fiber cable has a metallic central
part that gives it
support. Consequently, GYXTC8S optical fiber cable is widely used
in long distance telecommunication and more so, in rural areas.
Moreover,
GYXTC8S optical fiber cable has the ability to last for a long time
without getting destroyed and for that reason; it is highly
recommended by many
technicians. It is also designed to survive in harsh environment
and perform its role effectively. That means climate changes do not
affect its
performance whatsoever.

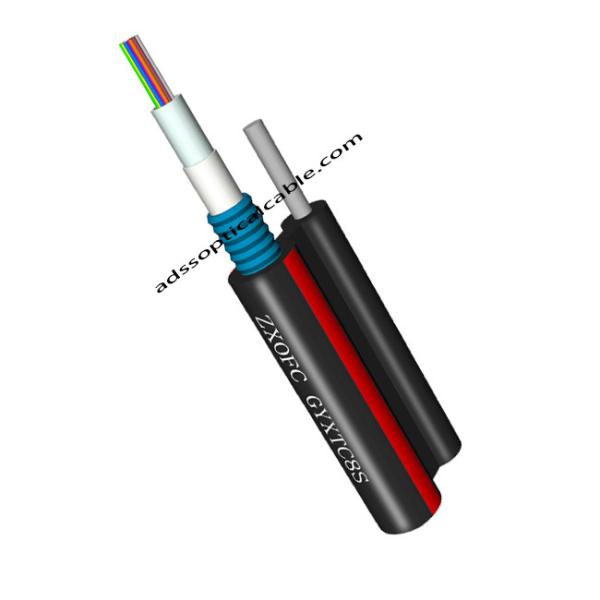

Cable Cross-section diagram
Feature
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct
stranding process render the cable excellent mechanical and
environmental properties
Double-jacket structure make cable have nice properties of moisture
resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Application:
Laying modes: Aerial
Rural communication, local trunk line, CATV & computer networks
system
Technique Parameters
| Cable Type (Increased by 2fibers) | Fiber Count | Max.Fibers in Tubes | Cable Weight (kg/km) | Cable Diameter (mm) | Tensile Strength
Long/Short Term ( N) | Crush Resistance
Long/Short Term (N/100mm) |
| GYXTC8S2 ~ 8 | 2 ~ 8 | 8 | 117.0 | 8.1 x 16.9 | 2000/6000 | 300/1000 |
| GYXTC8S10 ~ 12 | 10 ~ 12 | 12 | 121.0 | 8.3 x 17.0 | 2000/6000 | 300/1000 |
Temperature Rage:
Operating :-40℃ to +70℃
Storage :-40℃ to +70℃
Standards:
Comply with stand YD/T 1155-2001 as well as IEC60794-1.
Certificate
Our services
Package and delivery
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by
exress
(DHL,UPS,FEDE or TNT..) as your request .
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including :ZXOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any
of which is optional.
