GJYXFHS Outdoor Steel Tape Armored Duct Non-metallic Bow-type drop Cable

Description

GJYFJCH fiber optic cable is 8-like fiber cable that is used in the aerial installations. This type of fiber optic cable contains about 12 fibers that are

used for transmission purpose. In most cases, GJYFJCH fiber optic cable is most suitable fiber for electromagnetic connections. Therefore, you

are likely to get the GJYFJCH fiber optic cable connected to electrical devices such as TVs and Radios.

Optical Characteristics

Good UV and flame resistant.

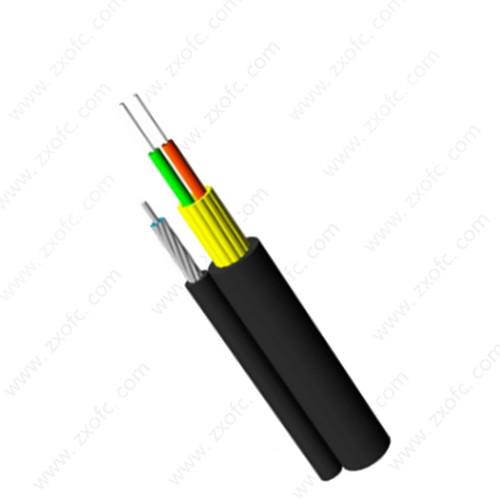

Figure 8, tight-buffer design

Compact, soft, flexible, easy to install

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

Single steel wire or massagers as the additional strength member ensure good performance of tensile strength.

Simple structure, light weight, and high practicability;

Novel flute design, easily strip and splice, simplify the installation and maintenance;

Low smoke, zero halogens, and flame retardant sheath

Subcable flame-retardant jacket;

Excellent stripping performance of tight buffer fiber;

Suited to SM fiber and MM fiber (9μm, 50μm, and 62.5μm).

The type of this fiber with single mode or multimode with a loose tube which is made of high modulus plastic

There is used an aramid yarn for filling. The center used a steel wire locates as a metallic

Strength member .for some cable, a steel wire sometimes sheathed with polyethylene .the tubes (and filers) is stranded around the strength

member into a compact and circular cable core.double side’s chromium for

PSP with PE as sheath .by single or double wire for installation, also with PE for outer sheath

Technique Parameters

Packaging Details

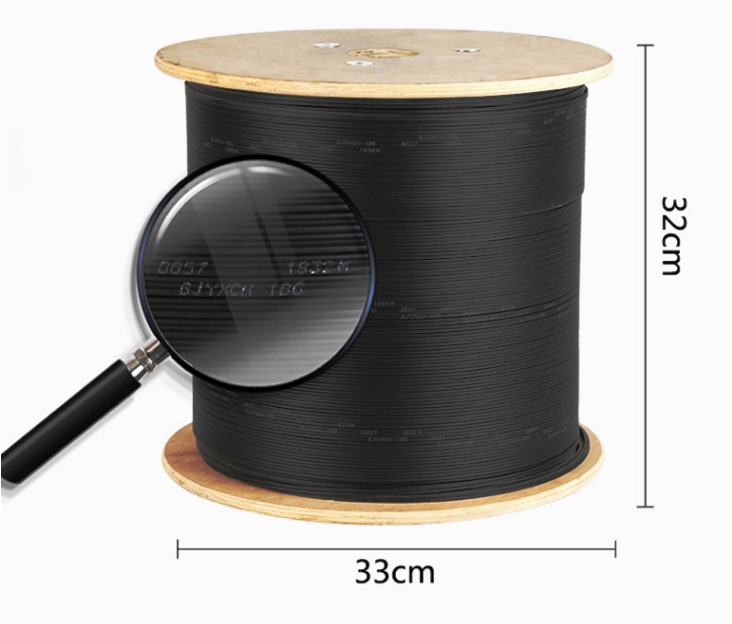

1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be Negotiated!

Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
