    Simple Structure Self Supporting Drop Wire Cable FTTH Outdoor 2 Core LSZH Jacket

    Ask Lasest Price
    Brand Name : ZX-OFC
    Model Number : GJYXCH
    Certification : CE ROSH ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 KM per month
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

    Simple Structure Self Supporting Drop Wire Cable FTTH Outdoor 2 Core LSZH Jacket

    LSZH Jacket self-supporting drop wire cable FTTH outdoor 2 core fiber optic cable


    Description


    The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel

    wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.


    Characteristics:

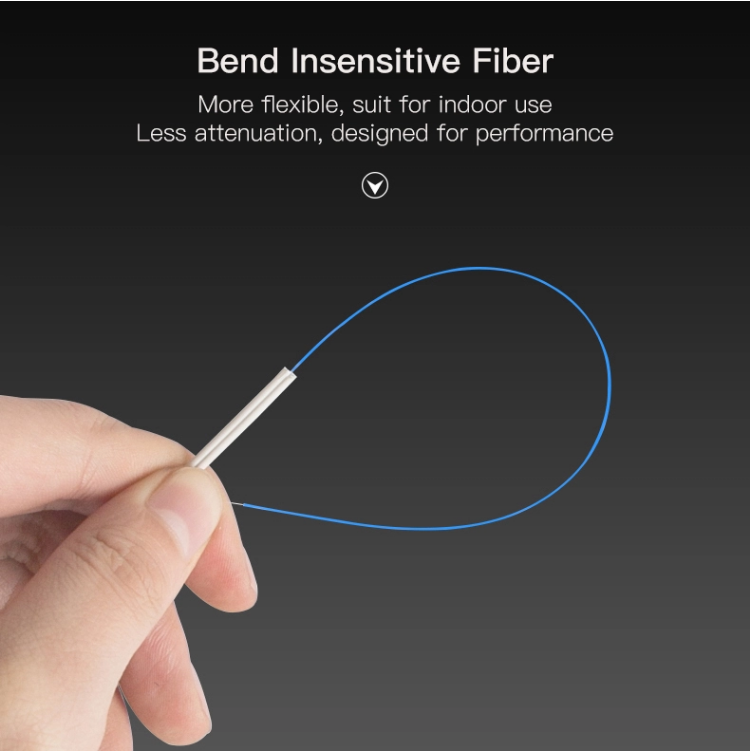

    1. Special low-bend-sensitivity fiber provides high bandwidth and excellent

    communication transmission property;

    2. Simple structure, light weight and high practicability;

    3. Novel flute design, easily strip and splice, simplify the installation and maintenance;

    4. Low smoke, zero halogen and flame retardant sheath.


    FTTH Fiber Parameters


    No.ItemsUnitSpecification
    G.657A1
    1Mode Field Diameter1310nm9.0±0.4
    1550nm10.1±0.5
    2Cladding Diameterμm124.8±0.7
    3Cladding Non-Circularity%≤0.7
    4Core-Cladding Concentricity Errorμm≤0.5
    5Coating Diameterμm245±5
    6Coating Non-Circularity%≤6.0
    7Cladding-Coating Concentricity Errorμm≤12.0
    8Cable Cutoff Wavelengthnmλcc≤1260
    9Attenuation(max.)1310nmdB/km≤0.35
    1550nmdB/km≤0.21
    10Macro-Bending Loss1turn×10mm radius @1550nm
    1turn×10mm radius @1625nmdB≤1.5

    Mechanical and Environmental Characteristics


    ItemsUnitSpecifications
    Tension(Long Term)N100
    Tension(Short Term)N200
    Crush(Long Term)N/10cm1000
    Crush(Short Term)N/10cm2200
    Min. Bend Radius(Dynamic)mm30
    Min. Bend Radius(Static)mm15
    Installation Temperature-20~+60
    Operating Temperature-20~+60
    Storage Temperature

    -20~+60



    Packaging Details


    1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.


    Photo Show:

    Sheath mark:
    The following printing(white hot foil indentation)is applied at 1meter intervals.

    a. Supplier: ZXOFC or as customer required;
    b. Standard Code(Product Type, Fiber Type,Fiber Count);
    c. Year of manufacture: 14 years;
    d. Length marking in meters.

    Port:

    Shenzhen/GuangZhou/Hongkong

    Lead Time:
    Quantity(KM)1-5050-100100-300≥300
    Est.Time(Days)77-107-15To be Negotiated!

    Note

    The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.



    The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
