GYTA53 Underground Direct Buried Armored Fiber Optical Cable 24/48/64/96 Cores

GYTA53 Underground Armored Direct Buried Fiber Optical Cable For 24/48/64/96 Cores

Description

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin polyethylene (PE) inner sheath. After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath.

Products' Specification:
Properties:
♦ overlapping aluminum tape providing an excellent anti-moisture performance
♦ double sheath and double armos providing excellent anti-crush and rodent-proof properties
Structure Characters:
♦Metallic strenthen member(phosphated steel wire)
♦Double coated PE Corrugated steel tape under PE sheath
♦Double coated PE aluminum tape under PE theath
Applicable fielcs:
♦Long-distance communication,LAN
♦moisture-proof and rodent-proof

Techinical data:

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter /pad diameter(mm)	Thickness of Inner jacket(mm)	Thickness of outer jacket(mm)	Cable diameter(mm)	Cable weigh(kg/km)
4	1+6	4	1.7±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.1 ±0.5	175
6	1+6	6	1.7±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.1 ±0.5	175
8	1+6	4	1.7±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.1 ±0.5	175
12	1+6	6	1.7±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.1 ±0.5	175
18	1+6	6	1.7±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.1 ±0.5	176
24	1+6	6	1.7±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.1 ±0.5	176
30	1+6	6	1.7±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.1 ±0.5	176
36	1+6	6	1.7±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.1 ±0.5	177
48	1+6	12	2.0±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.8 ±0.5	191
60	1+6	12	2.0±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.8 ±0.5	192
72	1+6	12	2.0±0.1	2.0/2.0	0.9±0.1	1.8±0.1	13.8 ±0.5	192
84	1+7	12	2.0±0.1	2.2/2.9	0.9±0.1	1.8±0.1	14.7 ±0.5	219
96	1+8	12	2.0±0.1	2.2/3.5	0.9±0.1	1.8±0.1	15.4 ±0.5	235
108	1+9	12	2.0±0.1	2.2/4.2	0.9±0.1	1.8±0.1	16.1 ±0.5	253
120	1+10	12	2.0±0.1	2.2/4.9	0.9±0.1	1.8±0.1	16.8 ±0.5	272
132	1+11	12	2.0±0.1	2.4/5.5	0.9±0.1	1.8±0.1	17.4 ±0.5	294
144	1+12	12	2.0±0.1	2.4/6.3	0.9±0.1	1.8±0.1	18.2 ±0.5	317
288	1+9+15	12	2.0±0.1	2.2/4.2	0.9±0.1	1.8±0.1	20.1 ±0.5	382

Standards

GYTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

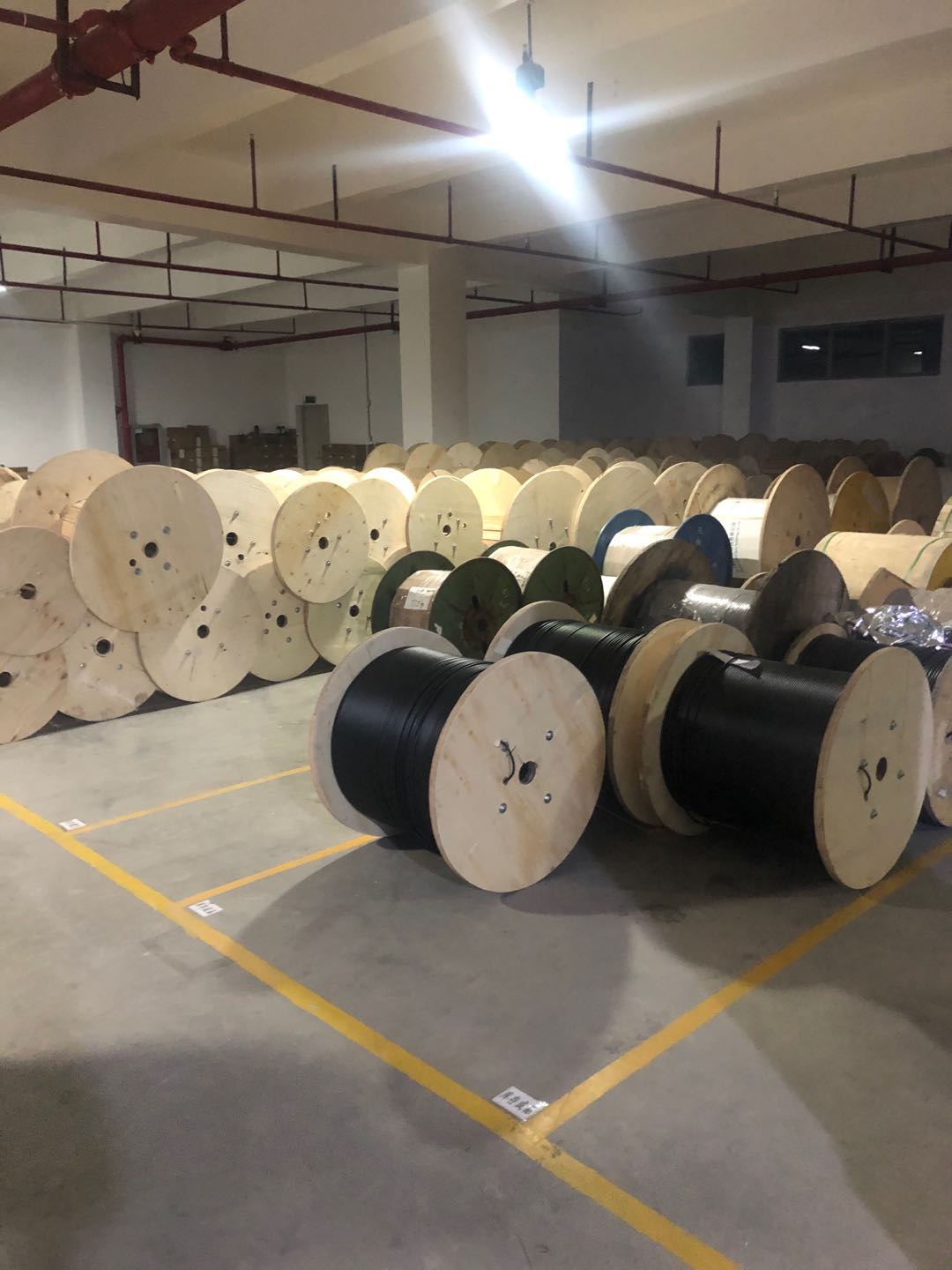

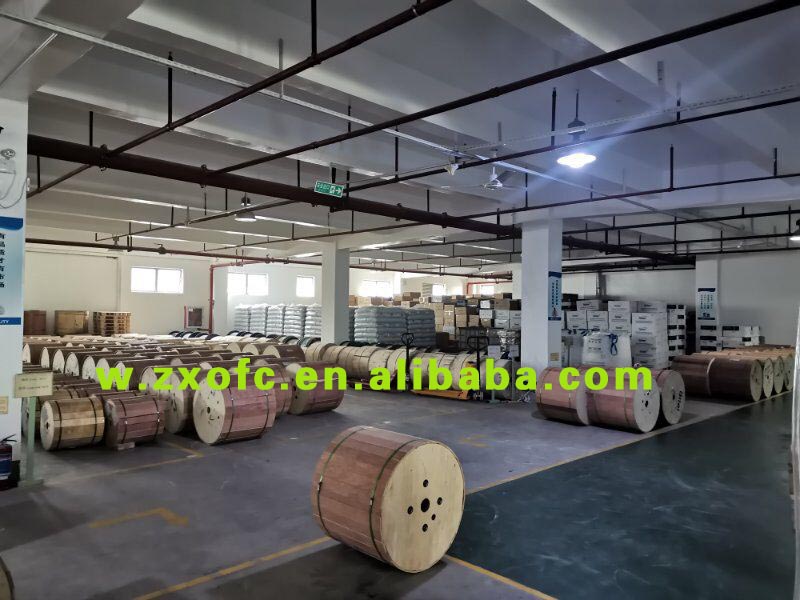

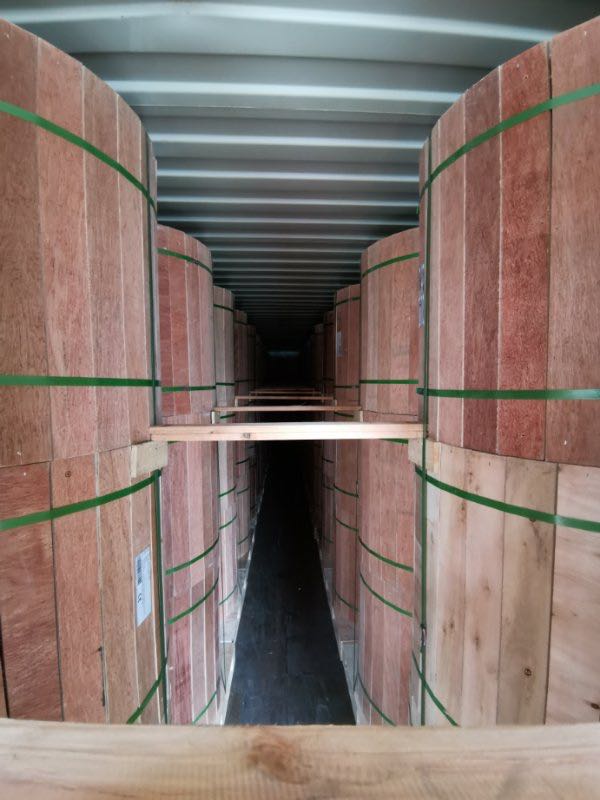

Pacakge & Shipping

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
