    GYXTW Uni Tube Armored Underground Fiber Optic Cable G652D OM1 OM2 OM3 Black Jacket

    Ask Lasest Price
    Brand Name : ZXOFC
    Model Number : GYXTW
    Certification : CE,ISO9001,ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal,Credit card
    Supply Ability : 10000KM per month
    Delivery Time : 1-2 weeks according to the lengths
    • Product Details
    • Company Profile

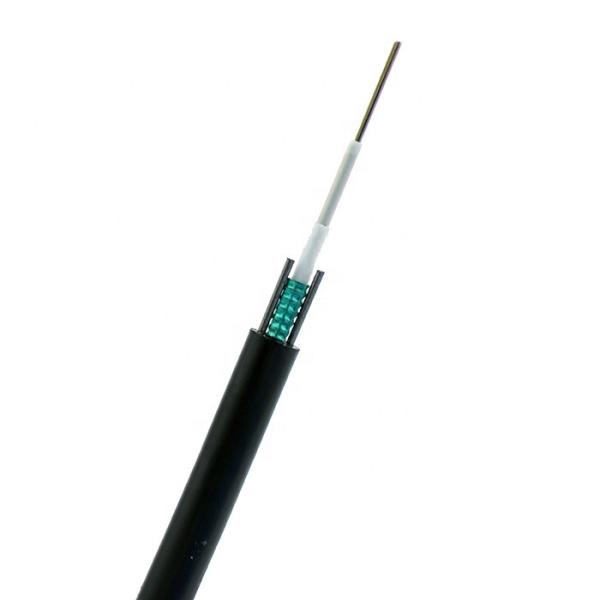

    GYXTW Uni Tube Armored Underground Fiber Optic Cable G652D OM1 OM2 OM3 Black Jacket

    GYXTW Uni-tube Armored G652D/OM1/OM2/OM3 4/6/8/12/24C fiber optic cable


    Description


    Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.

    Characteristics
    Uni-tube gel-filled construction for superior fiber protection.
    CST armorto protect cable from rodentattack and mechanical damage.
    Embedded steel wire provide desirable tensile strength and crush resistance.
    Compact, easy to install.
    UV and moisture-resistantdesign
    Application:
    Installed in duct, direct burial.
    FTTx.
    Standards
    GYTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

    Optical Charateristics

    Fiber TypeG.652G.65550/125^m62.5/125^m

    Attenuation

    (+20X)

    850 nm<3.0 dB/km<3.3 dB/km
    1300 nm<1.0 dB/km<1.0 dB/km
    1310 nm<0.36 dB/km<0.40 dB/km
    1550 nm<0.22 dB/km<0.23 dB/km
    Bandwidth850 nm>500 MHz-km>200 Mhz-km
    1300 nm>500 MHz-km>500 Mhz-km
    Numerical Aperture0.200±0.015 NA0.275±0.015 NA
    Cable Cut-off Wavelength cc<1260 nm<1450 nm

    Structure and Technical Specifications

    Fiber Count

    Nominal Diameter

    (mm)

    Nominal Weight

    (kg/km)

    Allowable Tensile Load

    (N)

    Allowable Crush Resistance
    (N/100mm)
    Short TermLong TermShort TermLong Term
    2~127.86015006001500600
    14~248.58515006001500600

    Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for

    more detailed information.


    We produce and test cable comply with following standard

    Mechanical Performance
    Max Tension PerformanceIEC 60794–1-2-E
    Max. Operation TensionIEC 60794–1-2-E1
    Crush TestIEC 6079 –1-2-E3
    Impact TestIEC 60794–1-2-E4
    Repeated BendingIEC 60794–1-2-E6
    Torsion TestIEC 60794–1-2-E7
    Cable bendIEC 60794–1-2-E11A
    Attenuation CoefficientITU-T G.652
    Structural TestIEC-60793-1-20
    Environmental Performance
    Temperature CyclingIEC 60794–1-2-F1
    Water PenetrationIEC 60794–1–2-F5B
    Filing Compound FlowIEC 60794-1-E14

    Product Cross-section diagram


    Package and Shipping


    PackagingWooden drum, 2000m to 6000m/drum or as you required
    Shipping methods.By sea or by air

    Sheath mark applied at

    1-meter intervals


    a. Supplier: Guanglian or as customer required
    b. Standard Code(Product Type, Fiber Type, Fiber Count)
    c. Year of manufacture
    d. Length marking in meters

    FAQ

    1. Are you the real factory?

    Yes,we are the real factory with 20 years’ history.


    2. What is your fiber brand?

    Fiber brands including :ZXOFC


    3. What is your main products?

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

    4. Product quality guarantee period?

    25 years’ Guarantee for fiber optic cable


    5. Do you have certificate for raw material?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


    6. What is your delivery time?

    Within 24 hours for 30KM normal kinds of fiber optic cable;

    1 ~2 days for fiber optic patch cords with 10000 connectors.


    7. MOQ: what is your minimum quantity?

    MOQ for fiber optic cables: 1KM

    There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


    8. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.


    9. Payment

    For large orders: T/T by advanced deposit

    For small orders: T/T,Western Union and Paypal are acceptable.


    10. Shipping & Delivery

    For large orders: by sea (LCL or FCL)

    For small orders: by sea (LCL), by air or by courier services,any of which is optional.
