Armoured Double Jacket Direct Burial Fiber Optic Cable 12/24/48C Rodent Resistant GYTA53

    Buy cheap Armoured Double Jacket Direct Burial Fiber Optic Cable 12/24/48C Rodent Resistant GYTA53 from wholesalers

    Buy cheap Armoured Double Jacket Direct Burial Fiber Optic Cable 12/24/48C Rodent Resistant GYTA53 from wholesalers
    • Buy cheap Armoured Double Jacket Direct Burial Fiber Optic Cable 12/24/48C Rodent Resistant GYTA53 from wholesalers
    • Buy cheap Armoured Double Jacket Direct Burial Fiber Optic Cable 12/24/48C Rodent Resistant GYTA53 from wholesalers

    Armoured Double Jacket Direct Burial Fiber Optic Cable 12/24/48C Rodent Resistant GYTA53

    Ask Lasest Price
    Brand Name : ZXOFC
    Model Number : GYTA53
    Certification : CE,ISO9001,ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal,Credit card
    Supply Ability : 10000KM per month
    Delivery Time : 1-2 weeks according to the lengths
    • Product Details
    • Company Profile

    Armoured Double Jacket Direct Burial Fiber Optic Cable 12/24/48C Rodent Resistant GYTA53

    GYTA53 Armoured Double Jacket 12/24/48C Rodent Resistant Optic Fiber Cable


    Description


    Stranded Loose Tube Armored Cable

    The fibers, 250μ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. Which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
    Characteristics
    Good mechanical and temperature performance
    High strength loose tube that is hydrolysis resistant
    Special tube filling compound ensure a critical protection of fiber
    Crush resistance and flexibility
    The following measures are taken to ensure the cable watertight:
    -Steel wire used as the central strength member
    - Loose tube filling compound
    - 100% cable core filling
    - APL moisture barrier
    - PSP enhancing moisture-proof
    - Water-blocking material
    Application:
    long-distance communication lan
    moisture-proof and rodent-proof
    Standards
    GYTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
    Technical Data:
    Cable TypeFiber CountTubesFillersCable Diameter
    mm
    Cable Weight kg/kmTensile Strength
    Long/Short Term N
    Crush Resistance
    Long/Short Term
    N/100mm
    Bending Radius
    Static
    /Dynamic
    mm
    GYTA53-2~62~61514.52091000/30001000/300010D/20D
    GYTA53-8~128~122414.52091000/30001000/300010D/20D
    GYTA53-14~1814~183314.52091000/30001000/300010D/20D
    GYTA53-20~2420~244214.52091000/30001000/300010D/20D
    GYTA53-26~3026~305114.52091000/30001000/300010D/20D
    GYTA53-32~3632~366014.52091000/30001000/300010D/20D
    GYTA53-38~4838~484115.42341000/30001000/300010D/20D
    GYTA53-50~6050~605015.42341000/30001000/300010D/20D
    GYTA53-62~7262~726015.92441000/30001000/300010D/20D
    GYTA53-74~8474~847118.02971000/30001000/300010D/20D
    GYTA53-86~9686~968018.02971000/30001000/300010D/20D
    GYTA53-98~10898~1089119.43381000/30001000/300010D/20D
    GYTA53-110~120110~12010019.43381000/30001000/300010D/20D
    GYTA53-122~132122~13211121.33921000/30001000/300010D/20D
    GYTA53-134~144134~14412021.33921000/30001000/300010D/20D
    GYTA53-146~216146~21621.33951000/30001000/300010D/20D

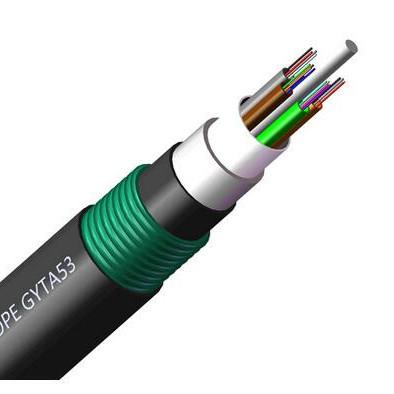

    Product Cross-section diagram


    Package and Shipping


    PackagingWooden drum, 2000m to 6000m/drum or as you required
    Shipping methods.By sea or by air

    Sheath mark applied at

    1-meter intervals


    a. Supplier: Guanglian or as customer required
    b. Standard Code(Product Type, Fiber Type, Fiber Count)
    c. Year of manufacture
    d. Length marking in meters

    FAQ

    1. Are you the real factory?

    Yes,we are the real factory with 20 years’ history.


    2. What is your fiber brand?

    Fiber brands including :ZXOFC


    3. What is your main products?

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

    4. Product quality guarantee period?

    25 years’ Guarantee for fiber optic cable


    5. Do you have certificate for raw material?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


    6. What is your delivery time?

    Within 24 hours for 30KM normal kinds of fiber optic cable;

    1 ~2 days for fiber optic patch cords with 10000 connectors.


    7. MOQ: what is your minimum quantity?

    MOQ for fiber optic cables: 1KM

    There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


    8. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.


    9. Payment

    For large orders: T/T by advanced deposit

    For small orders: T/T,Western Union and Paypal are acceptable.


    10. Shipping & Delivery

    For large orders: by sea (LCL or FCL)

    For small orders: by sea (LCL), by air or by courier services,any of which is optional.
