Outdoor Armored Singlemode Fiber Optic Cable 12C&16C&24C
Description

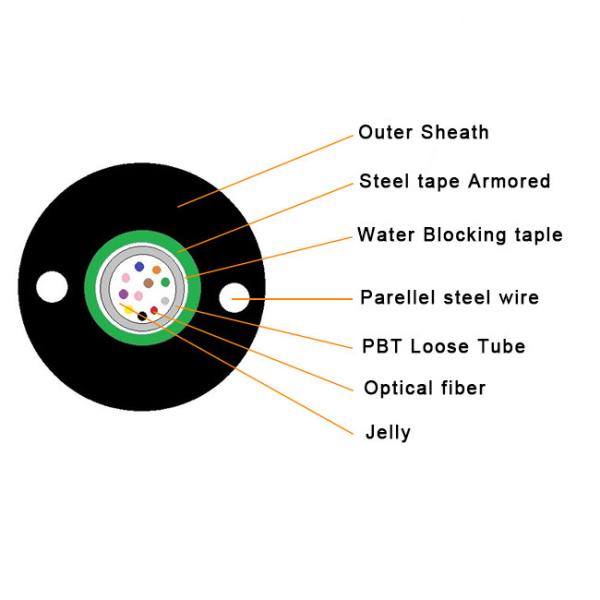

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel
tape. The cable is completed with a polyethylene (PE) sheath.
Product Characteristics
1.central loose tube, with paralleled steel wires and corrugated steel tape
2.proper design and precise control of excess length render the cable excellent mechanical and environmental properties
3.small outer diameter, light weight and low price, easy for installation
4.high crush resistance and bullet resistance by the armored steel tape
Applications
Standards: YD/T 769-2010 Outdoor central tube optical cable for telecommunications
Applications: The kind of cable is suitable for duct, aerial non-self-supporting, groove, tunnels, leading in and cable trench, etc.
Structural Parameter
| Fiber Count (F) | Cable Diameter (mm) | Cable Weight (kgs) | Tensile Strength (N) | Crush Strength (N) | Min. Bending Radius | Temperature Range (℃) |
| Long term | Short Term | Long term | Short Term | Long term | Short Term |
| 2 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 4 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 6 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 8 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 10 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 12 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| Fiber Type | Fiber attenuation(+20℃) | Bandwidth | Numerical aperture | Cut-off wavelength of optic fiber cable |
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Packaging & Shipping

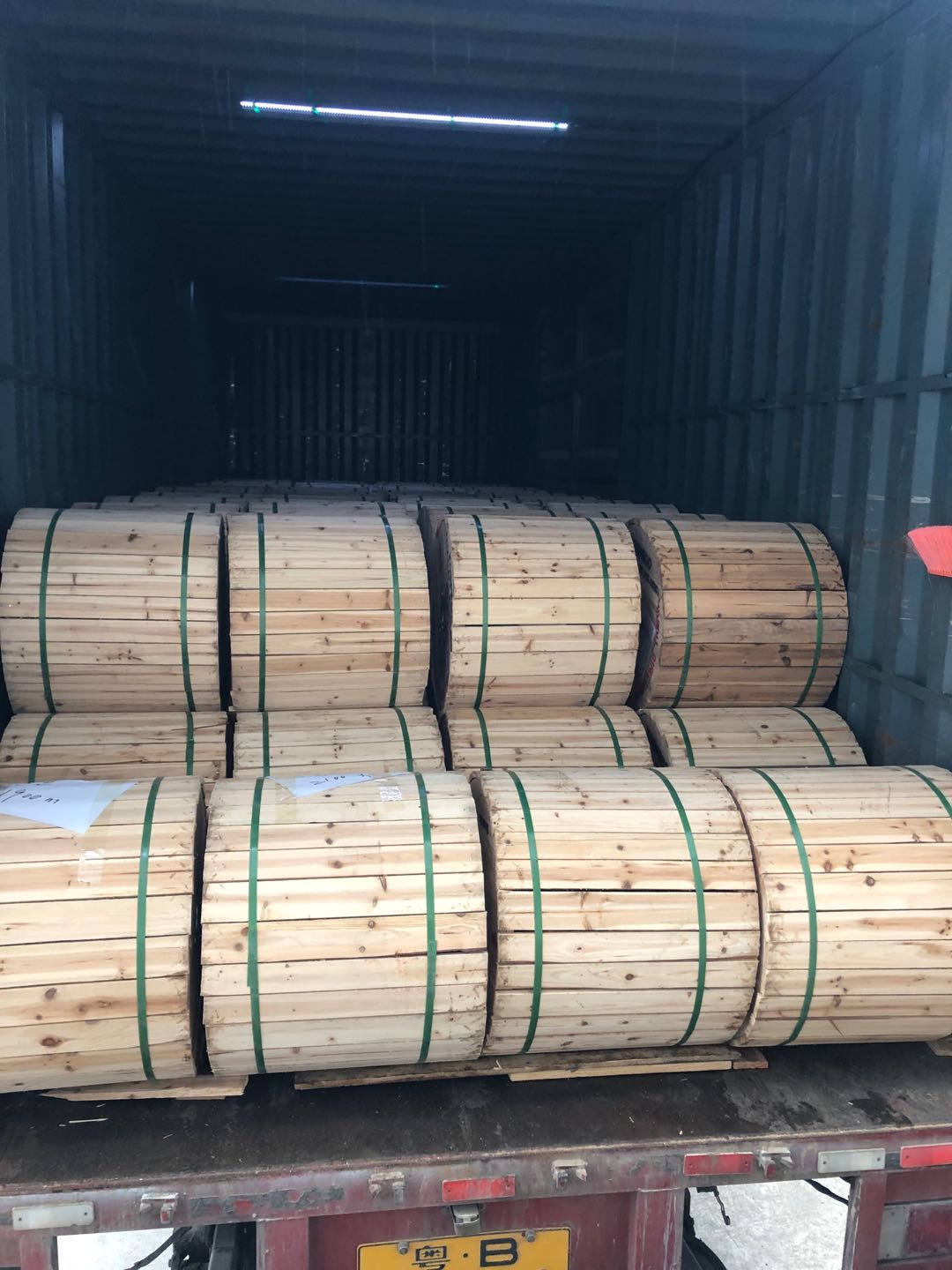

The fiber optic cable are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should beused to avoid damaging the package and to handle with ease.Cables should be protected from moisture; kept away fromhigh temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
FAQ
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including :ZXOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
