FTTH Extract Optical Cable Removable FTTH 4 Core 8/12/24/48 Core
G657A Optical Cable
Description
Extract Fiber Cable-I Modelis designed to suit the needs of Telecom
infrastructures cabling, for networks FTTH. It allows a
permanent accessibility by straight mid-span access for derivation
without splice. Protected by a Low Smoke Halogen Free outer
sheath (LSOH), these cables have a fire behaviour in accordance
with international standards. It can be laid in trough or in rising
main. The low friction coefficient of pushable module allows an
easy extraction from the cable over a maximum length of 20m.
The pushable module can be pusched in a duct until subscriber
connection.
Characteristics
1 to 48 singlemode optical fibers under a rigid coat 900um tight
structure striping quikcly,1m/min
Peripheral strength members glass FRP.
Low Smoke Halogen Free(LSOH) UV stabilisedlvory, EN 50290-2-27
compliant
Opening side location
Technique Parameters
| Cable Cord | Fiber count | Cable size (mm) | Cable Weigth (KG/KM) | Tensile (N) | Crush (N/100mm) | Crush Resistance (mm) | Range of Temperature (℃) |
| Long term | Short term | Long term | Short term | Dynamic | Static |
| ZX-CQSGL-4F | 4 | 6.5 | 35 | 200 | 550 | 200 | 1000 | 20D | 10D | -20℃～+60℃ |
| ZX-CQSGL-6F | 6 | 6.5 | 40 | 200 | 550 | 200 | 1000 | 20D | 10D |
| ZX-CQSGL-8F | 8 | 6.5 | 45 | 200 | 550 | 200 | 1000 | 20D | 10D |
| ZX-CQSGL-12F | 12 | 8.5 | 60 | 300 | 650 | 200 | 1000 | 20D | 10D |
| ZX-CQSGL-24F | 24 | 10.5 | 90 | 400 | 750 | 200 | 1000 | 20D | 10D |
| ZX-CQSGL-48F | 48 | 13.5 | 145 | 500 | 850 | 200 | 1000 | 20D | 10D |

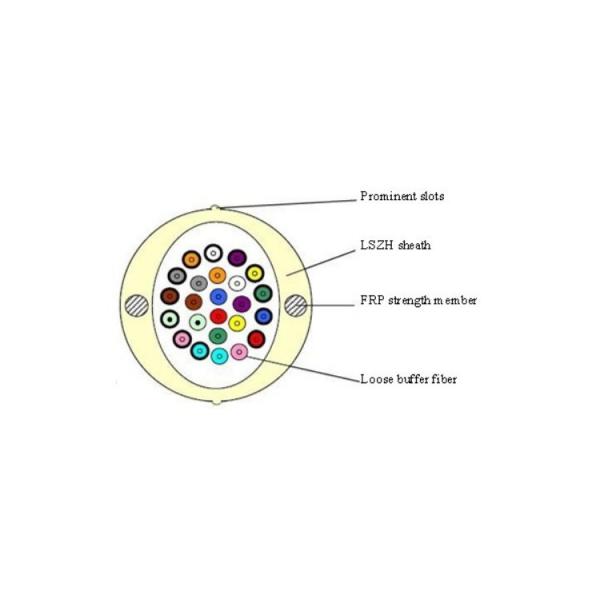

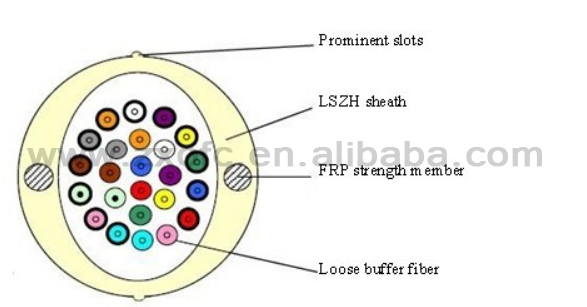

Cable Structure
Factory show
Package information
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by
exress
(DHL,UPS,FEDE or TNT..) as your request .
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including :ZXOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any
of which is optional.
