12/24/48/96/144 Core Aerial Self-Supporting Galvanized Stranded
Steel Wire Armored Figure 8 Fiber Optic Cable GYFTC8A
Description
The structure of GYFTC8A cable is to put 250µm optical fiber into
loose tube made of high modulus material, which is filled with
waterproof compound. The cable core is wrapped in a plastic-coated
aluminum (APL) and integrated with the steel strand into
an 8-figure polyethylene sheath. Figure-8 self-supporting structure
provide high tensile strength and enables easy and cost
saving aerial installations.
Features
• Steel wire strands have extremely high tensile strength, which is
convenient for self-supporting overhead laying and reduces
installation costs
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high
strength
• The loose tube is filled with special gel, which protect the
optical fiber
• Take the following measures to ensure the waterproof performance
of the optical cable
-Single metallic wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated aluminum (APL)
Optical Fibre Performance
| Type | Attenuation(+20℃) | Bandwidth | Numerical aperture |
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA |
Technical Performance
| Model | Fiber count | Tube count | Filling rope count | Weight (kg/km) | Tension (N) | Crush (N/100mm) | Bending Radius Static / dynamic (mm) |
| GYTC8A-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of suspension wire | 300/1000 | 10D/20D |
| GYTC8A-8~12Xn | 8~12 | 2 | 3 | 158 |
| GYTC8A-14~18Xn | 14~18 | 3 | 2 | 158 |
| GYTC8A-20~24Xn | 20~24 | 4 | 1 | 158 |
| GYTC8A-26~30Xn | 26~30 | 5 | 0 | 158 |
Package & Delivery
Packaging Details:
Carton box,Wooden reel,2/3/4/5 Km/drum
Inter packing: wooden reel,plastic reel or paper reel
Outer packing: carton box,pull out box
Sheath mark:
The following printing(white hot foil indentation)is applied at
1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.
Port:
Hongkong/Shenzhen
Lead Time:
| Quantity(KM) | 1~50 | 50~100 | 100~300 | ≥300 |
| Est.Time(Days) | Within 7 days | 5-10 days | 7-15 days | To be Negotiated!
|

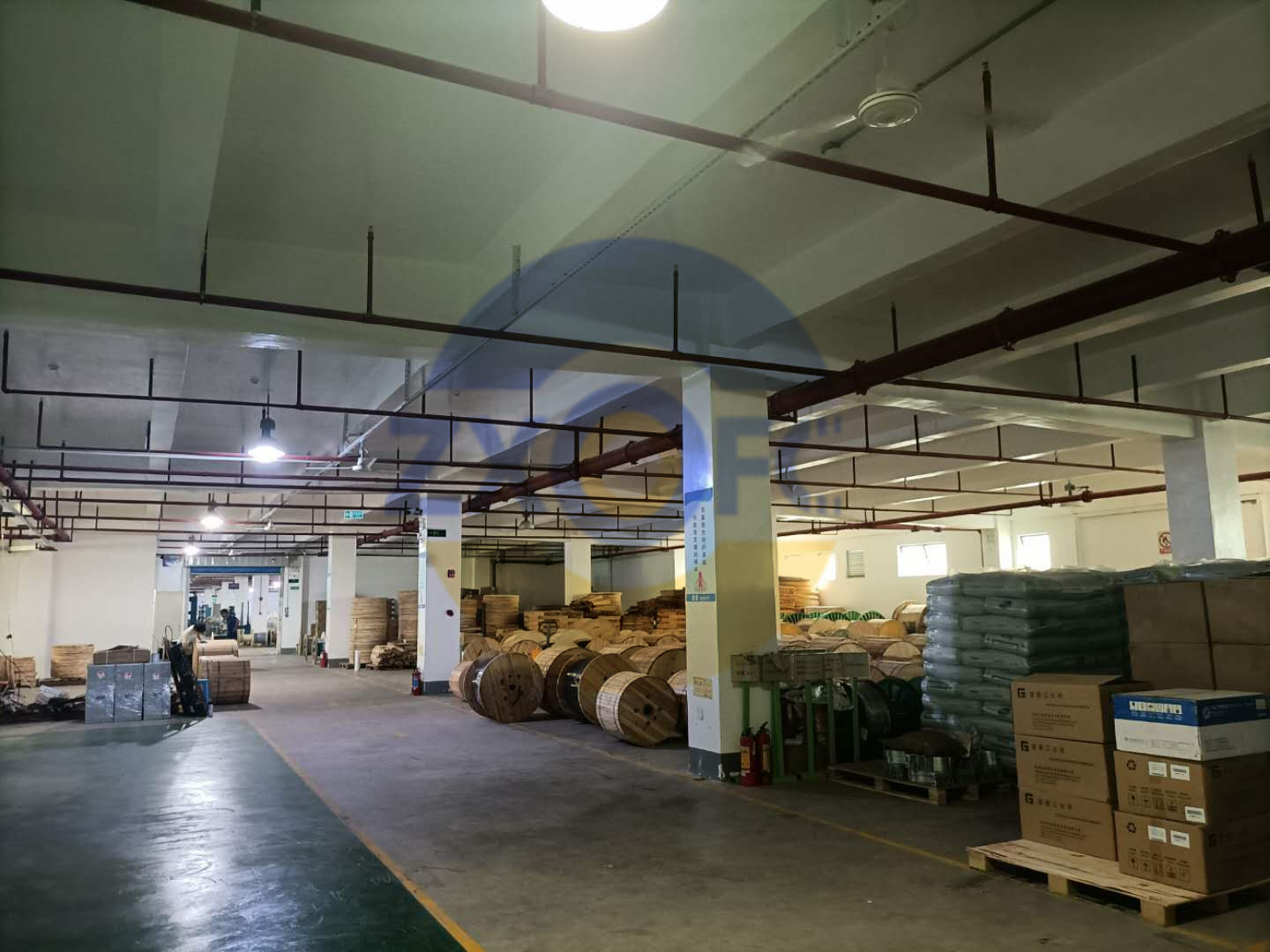

Factory Shows:
FAQ
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including :ZXOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any
of which is optional.
