12 24 48 72 96 144 288 Core Single Mode ADSS All Dielectric Aerial
Fiber Optic Cable
Description
ZXOFC is one of leading manufacturer of Outdoor Fiber Optical Cable
producing, ADSS Cable is our advantage, 2-288
Core is available. Supporting G652D, G655, G657A1, G657A2, OM1,
OM2, OM3,OM4 and OM5 fiber. The Span range from
50m to 1000m. The maximum tensile tension of 10000N can meet the needs of different high-voltage lines and
projects. The service life of the optical cable is more than 25 years,and its reliable
quality and stability have been
praised by customers from various countries.
Features
No fiber paste in the casing, no need to wipe when connecting
No cable paste in the cable core gap, no need to wipe after
stripping
Improve fiber fusion splicing efficiency, environmental protection
Lighter weight with the same structure
Provide optical fiber with better moisture resistance than
traditional
Cable structure
Technique Parameters
| Ref.outer diameter | Ref.weight | Ref.daily max.working | Max allowable working tension kN | Break strength | Strength member CSA | Modulus of elasticity kN/ mm2 | Heat expansion coefficient ×10-6 /k | Ref.outer diameter
mm | Suitable span(m) (NESC Standard,m) |
| mm | kg/km | tension | | |
| PE sheath | AT sheath | kN | kN | mm2 | A | B | C | D |
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 12.5 | 160 | 100 | 140 | 100 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 13 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 13.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 13.6 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 13.8 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 14.5 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | 14.9 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 15.1 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 15.5 | 750 | 530 | 750 | 510 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 | 15.6 | 800 | 560 | 800 | 560 |
| 16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | 0.1 | 16.3 | 880 | 650 | 880 | 650 |
| 16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.4 | 16.8 | 1000 | 750 | 1000 | 760 |
| 17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.5 | 17.2 | 1100 | 800 | 1100 | 830 |
| 17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.8 | 17.9 | 1180 | 880 | 1180 | 900
|
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km |
| (+20℃) | @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | | |

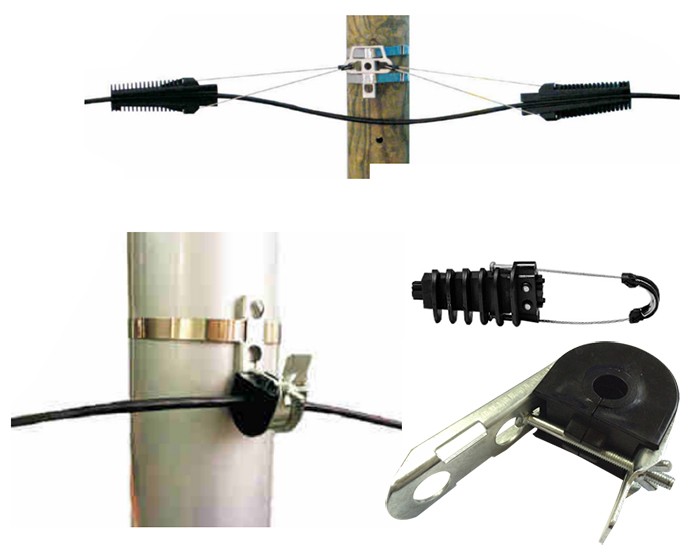

ADSS Accessiories
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty
All products have been tested before ship out
All products have 5 years warranty. If there is no man-made problem ,we will replace or
repair for you freely.
We own the best after-sale service. If any problems happen ,our
team will do our best to solve for customers.
