    Fullaxs Duplex LC CPRI Optical Armored Fiber Cable BBU To RRU

    Ask Lasest Price
    Brand Name : ZXOFC
    Model Number : ZXOFC FULLAXS
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000 pcs per month
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

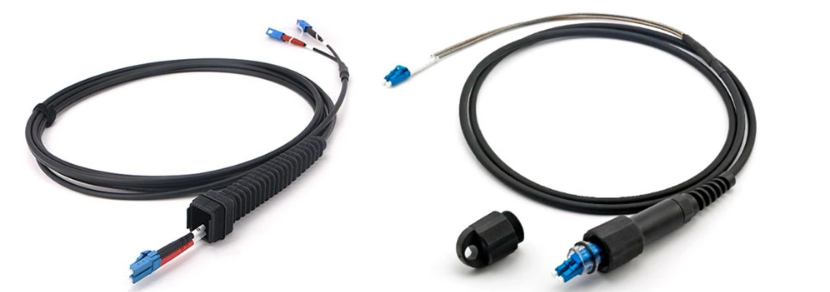

    Fullaxs Duplex LC CPRI Optical Armored Fiber Cable BBU To RRU

    Outdoor BBU To RRU Fiber Cable FTTA Waterproof Fullaxs Duplex LC CPRI Optical Armored Fiber Cable


    Description


    Outdoor FTTA waterproof Fullaxs duplex LC CPRI optical armored fiber cable with grounding cable for BBU to RRU


    Excellent designs this armored cable for connecting BBU to Ericsson RRU.


    Features:


    Ideal for outside cabling application


    Armored steel tape for rodent resistance


    Pressure resistance


    Fully water-blocked


    Moisture blocking loose tubes


    Easy Operation, reliable and cost-effective


    Technique Parameters


    ItemSpecifications
    Connector AFULLAXS Duplex LC, Straight boot
    Connector BDuplex LC, Straight boot
    Grounding cableGrounding cable on side B, Length 1.2m
    Fiber amount2 cores
    Fiber typeSingle mode 9/125um G.657A1
    Optical Cable Attenuation at 1310nm0.4dB/km
    Optical Cable Attenuation at 1550nm0.3dB/km
    IL/Connector0.3dB IEC 61300-3-4
    Return Loss/Connector>50dB IEC 61300-3-6
    Operation Temperature Range-20-70
    Storage Temperature Range-20-85
    Tensile strength350 N maximum
    Bending radius180nm minimum
    Crush Resistance1500 N/100 mm
    Outer sheathPE, full cable armored
    Cable sheath colorBlack
    Cable OD8.2mm +/-0.3mm
    Fan out3.0mm armored tube, Black color
