24 Core 48 Core OPGW Optical fiber composite Ground Wire Opgw Cable
with G652D OR G655 Fiber
Description

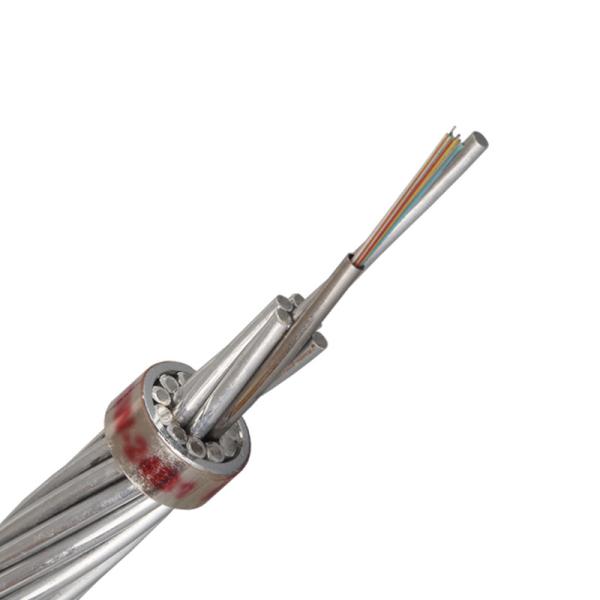

OPGW is a type of cable structure with composite of optical
transmission and overhead ground wire for power transmission. Its
working in power transmission line both as optical fiber cable and
overhead ground wire which can provide protection of
lightning strike and conducting short circuit currency.
The OPGW consist of stainless steel tube optical unit, aluminum
cladding steel wire, aluminum alloy wire. It has central stainless
steel tube structure and layer stranding structure. We can design
the structure according to different environment condition and
customers requirements
Characteristic
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose
tube from shrinking
Crush resistance and flexibility
loose tube filling compound100% cable core filling
Application
Optical fiber composite ground wire [OPGW] is suitable for
installation on new power lines with double function of ground wire
and communication. Especially for installation on normal voitage
and extra high voltage power lines. OPGW can replace
conventional ground wire of old power line with increasing fiber
communication function. They conduct short circuit current and
provide lightning resistance.
Features
1. Up to 144 fibers
2. Cable diameter and weight approximate with another ground wire.
Less additional load to tower, high tensile strength.
3. Excellent stainless steel tube stranding technology make the
fibers have good secondary excess length and allow the fibers free
movement in the tube. Which keeps the fiber stress-free while the
cable is subjected to longitudinal stress.
4. Optical fibers are protected by stainless steel tubes.
5. Excellent security, good bullet resist performance.
6. ACSW, AAW and SST stranded design provide wide range combination
of electrical conductivity and mechanical tensile strength.
Tech specification
| Cable model | OPGW-60 | OPGW-70 | OPGW-90 | OPGW-110 | OPGW-130 |
Number /diameter(mm) of
stainless steel tube | 1/3.5 | 2/2.4 | 2/2.6 | 2/2.8 | 1/3.0 |
| Number /diameter of AL wire(mm) | 0/3.5 | 12/2.4 | 12/2.6 | 12/2.8 | 12/3.0 |
| Number /diameter of ACS wire(mm) | 6/3.5 | 5/2.4 | 5/2.6 | 5/2.8 | 6/3.0 |
| Diameter of Cable (mm) | 10.5 | 12 | 13 | 14 | 15 |
| RTS(KN) | 75 | 45 | 53 | 64 | 80 |
| Cable weight (kg/km) | 415 | 320 | 374 | 432 | 527 |
| DC resistance(200C W/km) | 1.36 | 0.524 | 0.448 | 0.386 | 0.327 |
| Modulus of elasticity(Gpa) | 162 | 96.1 | 95.9 | 95.6 | 97.8 |
coefficient of Linear thermal
expansion(1/℃×10-6) | 12.6 | 17.8 | 17.8 | 17.8 | 17.2 |
| Short circuit capacity (kA²s) | 24 | 57.3 | 78.9 | 105.8 | 150.4 |
| Max. operation temperature (℃) | 200 | 200 | 200 | 200 | 200 |
| Max. fiber count | 48 | 32 | 48 | 52 | 30 |
Superior Lightning Resistance
• Fewer Aluminium Alloy (AA) wires are needed to meet electrical
specs
• More/Heavier duty ACS wires can be used
• AA wires can be completely replaced with ACS in some applications
Extruded Aluminium Core tube
• Good combination of crush and kink resistance
• Core tube can safely and easily be routed to closures without
armour
• Easy access to optical core Superior
Electrical Performance
• Aluminium core tube substantially increases conductor
cross-section
• Improved short-circuit capacity
High performance. Even in High fibre Counts
• All fibres are housed in the core tube
• Core tubes are available in a wide range of Inside Diameters
• Armour wires are not replaced with fibre tubes in high count
designs
Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for
containers
