    GYTS53 Armored Direct Buried Fiber Optic Cable Rodent Protection TLC

    Outdoor GYTS53 Armored Duct Direct Buried Underground Fiber Optic Cable

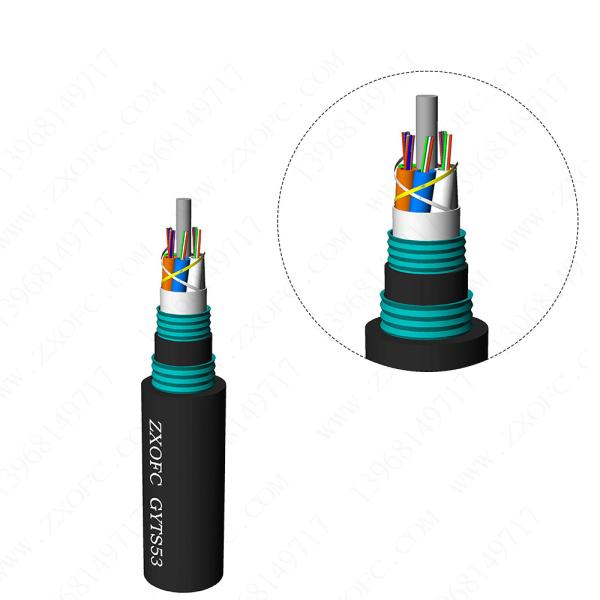

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.

    A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.

    Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core,

    which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

    Features

    1.Good mechanical and temperature performance

    2.High strength loose tube that is hydrolysis resistant

    3.Special tube filling compound ensure a critical protection of fiber

    4.Crush resistance and flexibility

    5.Full cross-section water-blocking structure to ensure good water blocking and moisture resistance

    6.Storage/Operating Temperature: -40°C to 70°C

    Application

    Suitable for long-distance communication and indoor communication

    Way of laying: Direct burial, pipeline

    Bend radius: Static 12.5x cable diameter

    Dynamic 25x cable diameter


    Cable Type (increased by 2fibers)Fiber CountCable Diameter (mm)Cable Weight (kg/km)Tensile Strength Long/Short Term

    ( N)

    Crush Resistance

    Long/Short Term (N/100mm)

    Bending Radius

    Static/ Dynamic (mm)

    GYTS53 2 ~ 362 ~ 3613.71901000/30001000/300010D/20D
    GYTS53 38 ~ 7238 ~ 7215.32291000/30001000/300010D/20D
    GYTS53 74~9674~9615.92441000/30001000/300010D/20D
    GYTS53 98 ~12098 ~12018.02881000/30001000/300010D/20D
    GYTS53 122 ~144122 ~14419.23251000/30001000/300010D/20D
    Noted:

    1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table.

    Cables with other specifications can be inquired.

    2. Cables can be supplied with a range of single mode or multimode fibers.

    3. Specially designed Cable structure is available on request.


    Packaging Details:

    1-5KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

    Sheath mark:

    The following printing(white hot foil indentation)is applied at 1meter intervals.

    a. Supplier: ZXOFC or as customer required;
    b. Standard Code(Product Type, Fiber Type,Fiber Count);
    c. Year of manufacture: 14 years;
    d. Length marking in meters.

    Port:

    Hongkong/Shenzhen

    Lead Time:
    Quantity(KM)1-300≥300
    Est.Time(Days)15To be Negotiated!
    Note

    The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.



    The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
